Extrusion Press Positioning Table

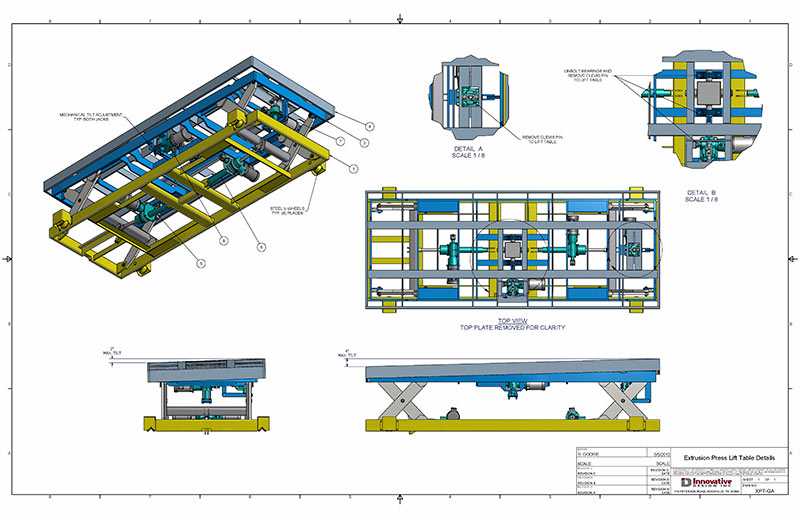

Innovative Design, Inc. (IDI) was hired by a graphite manufacturing facility for the conceptual engineering and design and detailed design of an articulated flat table. The table was approximately 48” x 144”, and was designed to support the weight of varying sizes and shapes of extruded graphite billets. The table was designed to allow for height adjustment in order to maintain centerline alignment of the billets to the press. The table was also designed for lateral tilt adjustment and linear tilt adjustment. The table was also designed to be moveable up to 2 feet into and away from the press. All table adjustments are programmable based on required parameters of each size billet.
